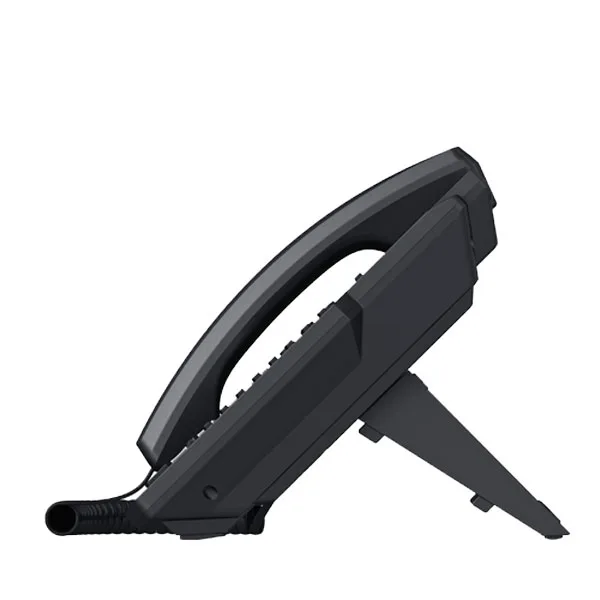

Điện thoại IP Fanvil X5S

– Điện thoại IP sử dụng cho 6 tài khoản SIP.

– Màn hình màu DSS Key-mapping thông minh.

– Đèn báo Voiceamail, âm thanh HD Voice.

– Jack cắm tai nghe RJ9 tương thích tất cả tai nghe.

– Tích hợp PoE and Gigabit Ethernet.

Features

Generic

– 16 SIP Lines

– HD Voice

– PoE enabled

– 2 LCDs (Main + DSS)

– Handset / Hands-free / Headset mode

– Intelligent DSS Keys

– Desktop stand/ Wall-mounted installation

– Optional external power supply

Phone functions

– Local Phonebook (2000 entries)

– Remote Phonebook (XML/LDAP, 2000 entries)

– Call logs (In/Out/Missed, 1000 entries)

– Black/White List Call Filter

– Screen saver

– Voice Message Waiting Indication (VMWI)

– Programmable DSS/Soft keys

– Network Time Synchronization

– Support Bluetooth headset (Through USB Dongle BT20)

– Support Wi-Fi Dongle

– Support Bluetooth headset (Through USB Dongle BT20)

– Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)

– Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)

– Support USB headset

– Support Recording (Through Flash Drive or Server Recording )

– Action URL / Active URI

– uaCSTA

Call Features

– Call out / Answer / Reject

– Mute / Unmute (Microphone)

– Call Hold / Resume

– Call Waiting

– Intercom

– Caller ID Display

– Speed Dial

– Anonymous Call (Hide Caller ID)

– Call Forwarding (Always/Busy/No Answer)

– Call Transfer (Attended/Unattended)

– Call Parking/Pick-up (Depending on server)

– Redial

– Do-Not-Disturb

– Auto-Answering

– Voice Message (On server)

– 3-way Conference

– Hot Line

– Hot desking

Audio

– HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)

– Wideband ADC/DAC 16KHz Sampling

– Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC

– Wideband Codec: G.722, AMR-WB

– Full-duplex Acoustic Echo Canceller (AEC)

– Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)

– Packet Loss Concealment (PLC)

– Dynamic Adaptive Jitter Buffer up to 300ms

– DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

– Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass

– IP Mode:IPv4/IPv6/IPv4&IPv6

– IP Configuration: Static / DHCP / PPPoE

– Network Access Control: 802.1x

– VPN: L2TP / OpenVPN

– VLAN

– LLDP

– QoS

– RTCP-XR (RFC3611),VQ-RTCPXR (RFC6035)

Physical

– Back Rack x1

– RJ9 Port x2: Handset x1, Headset x1

– RJ45 Port x2: Network x1, PC x1 (Bridged to Network)

– USB2.0 Port x1: Standard A, Connect with Wi-Fi USB dongle or Flash Driver

– Power Input: 12VDC/1A

– Power Consumption (PoE): 2.4 ~ 9.38W

– Power Consumption (Adapter): 1.4 ~ 6.54W
